7/8" N connector from China manufacturer - Zhejiang JinYuan Copper International Co., Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZJ-120618

Production Capacity: 1000000 Piece/Pieces per Mo...

Delivery Date: 15 days

Application: N

Impendance: 75 ohm

Means of Transport: Ocean,Land,Air

Packing: In Carton or box

Brand Name: OEM

Plating: Nickel

Meaterial: zinc/brass/ZMJ

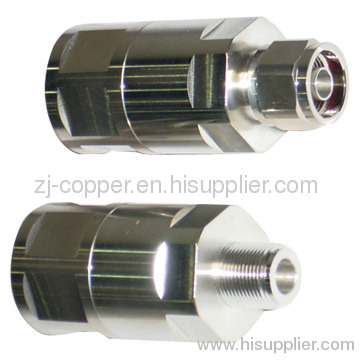

N Female (Male) Connector for 7/8"
1) According to IEC 169-16 specifications
2) Suitable for 7/8" cable, such as Andrew LDF5-50A and VXL5-50,

N Female (Male) Connector for 7/8"
1) According to IEC 169-16 specifications
2) Suitable for 7/8" cable, such as Andrew LDF5-50A and VXL5-50 RFS LCF78-50A
3) Connection dimensions: 5/8-24UNEF
4) Characteristic impedance: 50Ω
5) Contact resistance (outer conductor): ≤0.25mΩ
6) Contact resistance (inner conductor): ≤1mΩ
7) Insulation resistance: ≥5,000MΩ
8) Withstanding voltage: AC 2,500V, 1min
9) VSWR (0~2.5GHz): ≤1.10
10) Intermodulation (IM3): ≤-150 dBc,
