radiation leaky cable from China manufacturer - Zhejiang JinYuan Copper International Co., Ltd.

Price:	0.1 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZJ-072712

Production Capacity: 9000km monthly

Delivery Date: 15 days

Type: Coaxial

Number of Conductors: 1

Means of Transport: Ocean,Land

Packing: wooden drum

Application: Underground

Brand Name: JINYUAN

Operating Temperature: 20

1/2" 1-1/4" 1-5/8" 7/8" radiation leaky coaxial cable
1,for public mobile communication system
2,public security

1/2" 1-1/4" 1-5/8" 7/8" radiation leaky coaxial cable

1/2" Leaky Cable for public mobile communication system
1-1/4" Leaky Cable for railway wireless train commanding application
1-5/8" Leaky Cable for public security and fire profection wire-less communication
7/8" Leaky Cable for railway wireless train commanding application

We have the largest production capacity and test installation for leaky coaxial cable in China.

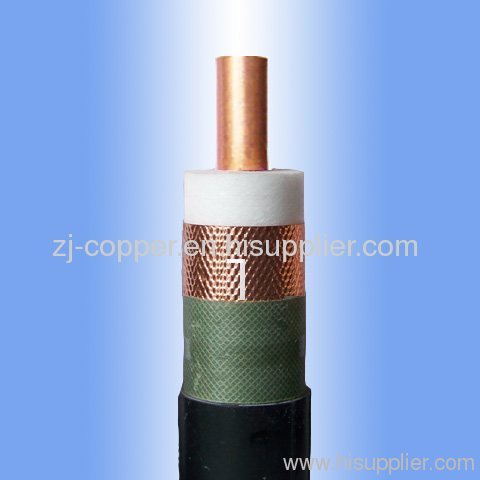

7/8" Radiation Leaky Cable

Structure characteristics:

Insulation is made of high physically foaming PE. Outer conductor is made of slotted, corrugated and longitudinally wrapped copper tape.

Advantages:

Wide range service frequency, stable magnetic field in narrow space, slow magnetic field strength declining, high anti-voltage, high tensile strength, air free maintenance, small bending radius.

Application range:

The cable can be used for wireless mobile communication, wireless control, wireless dispatcher, wireless alarming and so on, in the special area where the radio wave cannot transmitted directly and well, such as elevator, building gallery, mountainous area, tunnel, subway etc.

Size:

1)Inner conductro ø9.0mm

2)Insulation ø22.0mm

3)Outer conductor ø24.5mm

4)Outer sheath ø28.0mm

Inner Conductor: Smooth Copper Tube/ Copper Coating Aluminum/ Helix Copper Tube

Dielectric : Physical Foaming Polyethelene(PE)

Outer Conductor: Annularity Copper Tube Groove-milling outer conductor

Jacket : Black/White PE or Low Smoke Halogen-free Fire-retardant

Type No./Specifications	1/2"	7/8"	1-1/4"	1-5/8"
Inner Conductor	4.8mm	9.0mm	13.1mm	17.3mm
Insulation	12.0mm	22.0mm	32.0mm	42.0mm
Outer Conductor	14.5mm	24.5mm	34.5mm	44.5mm
Outer Sheath	17.0mm	28.0mm	37.5mm	48.0mm
Attenuation at 900MHz (dB/100m)	10.0	5.0	2.9	2.2
Attenuation at 1800MHz (dB/100m)	23.0	10.4	6.1	5.5
Coupling Loss at 900MHz (95%)(dB) (Testing at distance of 2 meters)	70	72	70	65
Coupling Loss at 1800MHz (95%)(dB) (Testing at distance of 2 meters)	65	70	63	60
