You are here: home  > cable  > leaky feeder cable  > HLCAY-50-42
Enlarge HLCAY-50-42

HLCAY-50-42

Price: 0.1 USD
Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: ZJ-12-31
Production Capacity: 600KM/MONTH
Delivery Date: 15DAYS
Type: Low Voltage
Jacket: PE
Brand Name: JINYUAN
Means of Transport: Ocean,Land
Packing: WOODEN DRUM
Application: Telecommunication
Insulation Material: PE
Conductor Material: Copper

RF corrugated copper tube HLCAY-50-42 coaxial cable is mainly used for base station which include wireless mobile communication, cellular, microwave

RF corrugated copper tube HLCAY-50-42coaxial cable is mainly used for base station which include wireless mobile communication, cellular, microwave
construction
Diamater(mm)
Leaky cable 1/2"(HLCAY-50-12)
Leaky cable 7/8"(HLCAY-50-22)"
Leaky cable 1-1/4"(HLCAY-50-32)

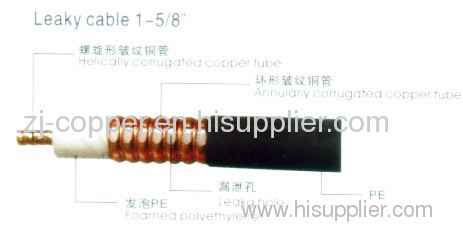

Leaky cable 1-5/8"(HLCAY-50-42)
Inner conductor
4.83
9.00
13.10
17.27
dielctric
12.00
22.00
32.00
42.00
Outer conductor
13.84
24.94
35.80
46.48
jacket
16.0
28.0
40.0
50.0










construction performance
Item
Leaky cable 1/2"(HLCAY-50-12)
Leaky cable 7/8"(HLCAY-50-22)"
Leaky cable 1-1/4"(HLCAY-50-32)
Leaky cable 1-5/8"(HLCAY-50-42)
Min.bending radius (one time)
80
150
200
300
Min.bending radius (several time)
125
300
400
510
Operating temperature
Standard jacket
-40℃~+70℃
Halogen-free/fire-retardant jacket
-25℃~+70℃
Nominal weight
Standard jacket
242
595
1050
1525
Halogen-free/fire-retardant jacket
261
635
1130
1615
Flat plate crush resistance kg/mm2
1.5
1.3
1.6
1.8
Max.pulling force      kg
45
90
150
130
DC resistanc
Inner conductor
1.65
1.09
0.69
0.88
Outer conductor
2.38
1.20
0.57
0.42
Insulation resistance MΩ.M
5000
Dielectric strength    DC.V
6000
10000
10000
15000
Velocity of propagation %
88
88
88
88
Peak power rating     KW
3000
Characteristic Impedance Ω
50±2
V.S.W.R (1M-3GHz)     Max
1.30
Attenuation(@20℃)&Coupling loss(50%)
Frequency(MHz)
Leaky cable 1/2”(HLCAY-50-12)
Leaky cable 7/8”(HLCAY-50-22)”
Leaky cable 1-1/4”(HLCAY-50-32)
Leaky cable 1-5/8”(HLCAY-50-42)
Attenuation
(d B/100M)
1.50
3.3
1.8
1.3
0.8
450
6.6
3.6
3.0
2.0
900
9.5
5.3
4.3
2.7
1800
13.1
7.6
5.6
4.4
2400
15.7
9.2
6.9
5.6
Coupling loss
(d B)
150
58
62
64
71
450
63
72
75
80
900
68
72
77
79
1800
73
84
84
89
2400
73
76
76
89

RF corrugated copper tube coaxial cable is mainly used for base station which include wireless mobile communication, cellular, microwave
