SMA Male Crimp Connector Straight for RG178

Price:	0.03~0.3 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZJ-120625

Production Capacity: 500000 Piece/Pieces per Wee...

Delivery Date: 10 days

Gender: Female

Material: Copper

Means of Transport: Ocean,Land,Air

Packing: Polybag,Carton

Type: F

Application: RF

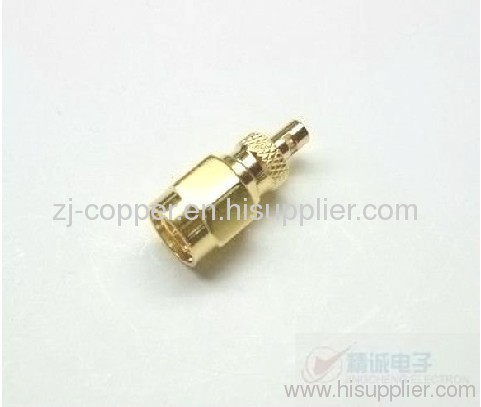

SMA Male Crimp Connector Straight for RG178
1)SMA male straight for RG178, RG196
2)Brass body, gold plated
3)Insulator PTFE
4)RoHS and ISO

SMA is one kind of RF coaxial connectors that is widely applied, with small-sized thread coupling. Characteristic impedance is 50Ω. The characteristic of connector is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable of micro-strip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system. They frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

MAJOR TECHNICAL CHARACTERISTICS

Temperature Range		-55 to 155°C
Vibration		98m/S2
Impedance		50Ω
Frequency Range		DC to 12.4GHz(Semi-Rigid Cable DC-18GHz)
Working Voltage		335V r.m.s at sea level
Withstanding Voltage		1000V r.m.s at sea level
Contact Resistance		Center contact≤3mΩ
		Outer Contact≤2.5mΩ
Insulation Resistance		≥5000mΩ
Center conductor retention force		≥0.28n
Coupling nut retention force		≥180N
Insertion Loss		≤0.15db/6GHz
Voltage Standing Wave Ratio	Straight	Flexible cable≤1.10+0.02f, Semi-rigid cable≤1.07+0.018f
	Right angle	Flexible cable≤1.20+0.03f, Semi-rigid cable≤1.17+0.02f
Durability(maiting)		≥500cycles

MATRERIAL AND PLATING

Body	brass,	gold plated
Pin Contact	brass	gold plated
Socket Contact	beryllium-copper	gold plated
Resilient Contact	beryllium-copper,	gold plated
Insulator	PTFE
Crimp Ferrule	copper alloy	nickel or gold plated
O-ring Sealing	6146 silicone rubber
