7/16 din rf connector from China manufacturer - Zhejiang JinYuan Copper International Co., Ltd.

Price:	0.03~0.3 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZJ-121113

Production Capacity: 500000 Piece/Pieces per Wee...

Delivery Date: 10 days

Type: DIN

Application: RF

Means of Transport: Ocean,Land,Air

Packing: Polybag,Carton

Brand Name: JINYUAN

Gender: Female

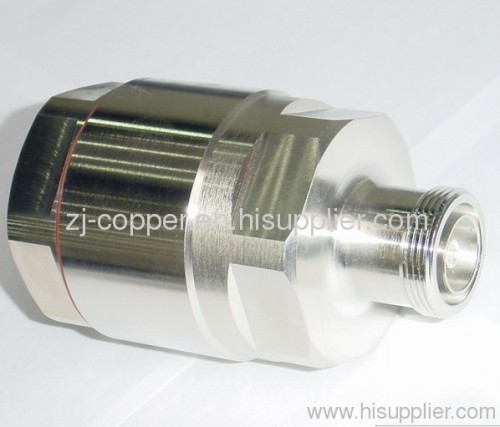

7/16 din connector for 1-1/4" cable
1. Female or Male connectors;
2. For 1-1/4" cable;
3. RoHS Compliant;
4. Connection dimensions:M29 x1.5

7/16 din rf connector for 1-1/4" cable manufacturer
1. Female or Male connectors;
2. For 1-1/4" cable;
3. RoHS Compliant;
4. Connection dimensions:M29 x1.5

7/16 din rf connector for 1-1/4" cable with RoHS certification

Features:
1) According to IEC 169-4 specifications
2) Suitable for 1-1/4" cable, such as Andrew LDF6-50 and VXL6-50
3) Connection dimensions: M29 x 1.5
4) Characteristic impedance: 50Ω
5) Contact resistance (outer conductor): ≤0.2mΩ
6) Contact resistance (inner conductor): ≤0.4mΩ
7) Insulation resistance: ≥104MΩ
8) Withstanding voltage: AC 4000V, 1min
9) VSWR (0~2.5GHz): ≤1.10
10) Intermodulation (IM3): ≤-150 dBc
