1-5/8" DIN female connector from China manufacturer - Zhejiang JinYuan Copper International Co., Ltd.

Product Detail

Model No.: ZJ-120801

Production Capacity: 5000 Piece per Week

Delivery Date: 10 days

Material: Copper

Means of Transport: Ocean,Land,Air

Packing: Polybag,Carton

Gender: Female

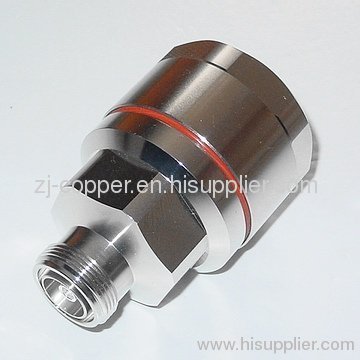

ROHS Certificate 1-5/8" DIN female rf coaxial connector
1. Suitable for 1-5/8" cable;
2. According to IEC 169-4 specifications;

ROHS Certificate 1-5/8" DIN female rf coaxial connector
1. Suitable for 1-5/8" cable;
2. According to IEC 169-4 specifications;

Features:

1) According to IEC 169-4 specifications

2) Suitable for 1-5/8" cable

3) Connection dimensions: M29 x 1.5

4) Characteristic impedance: 50Ω

5) Contact resistance (outer conductor): ≤0.2mΩ

6) Contact resistance (inner conductor): ≤0.4mΩ

7) Insulation resistance: ≥104MΩ

8) Withstanding voltage: AC 4000V, 1min

9) VSWR (0~2.5GHz): ≤1.10

10) Intermodulation (IM3): ≤-150 dBc
