BNC; Female Straight Adapter ; RF Connector from China manufacturer - Zhejiang JinYuan Copper International Co., Ltd.

BNC; Female Straight Adapter ; RF Connector

Price:	0.1 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZJ-120726

Production Capacity: 10000 Piece/Pieces per Week

Delivery Date: 10days

Means of Transport: Ocean,Land,Air

Packing: bag,and then in carton

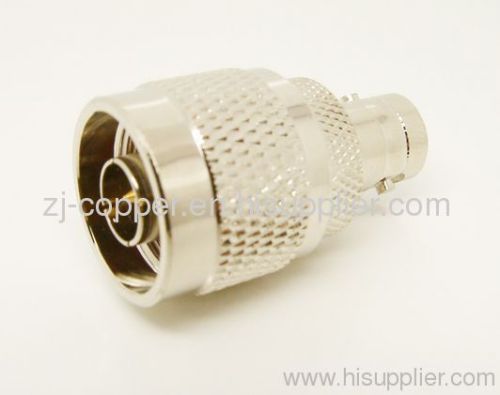

BNC Female Straight Adapter RF Connector
(BNC/N-KJ): N male/BNC female
Material: Brass (Nickel-plated)

BNC Female Straight Adapter RF Connector
(BNC/N-KJ): N male/BNC female
Material: Brass (Nickel-plated)
1. Temp. Range: -65~+165ºC;
2. Frequency range: DC-11GHz
3. Working voltage: 1000V max
4. Withstand voltage: 1500V RMS
5. Insulation resistance: >5000MΩ
6. Durability(mating): >500cycles

Series N RF coaxial connector are very popular screw-coupling middlepower coaxial connectors.
N connectors have the excellent performances of vibration proof,high reliability,superior electrical and mechanical properties,are widely used for communication applications.
Dimensions and technical characteristics are in accord with the specifications of MIL-STD-348A-304,IEC 60169-16 and CECC 22210.
Temperature range: -65 - +165°C
Characteristic impedance: 50 ohms
Frequency range: 0~11GHz
VSWR:≤1.30
Contact resistance:
- Center conductor: ≤1.0m ohms
- Outer conductor: ≤0.2m ohms
Voltage rating: 250V (rms)
Insulation resistance: ≥5,000M ohm
Dielectric withstanding voltage: 1,500V (rms)
We can supply all the sma, smb, mmcx, mcx, UHF, n, tnc, f, 7/16 DIN, ssma, ssmb, ipx, fme, RF connectors and cable assemblies. If you are interested with these products, please feel free to contact us.
