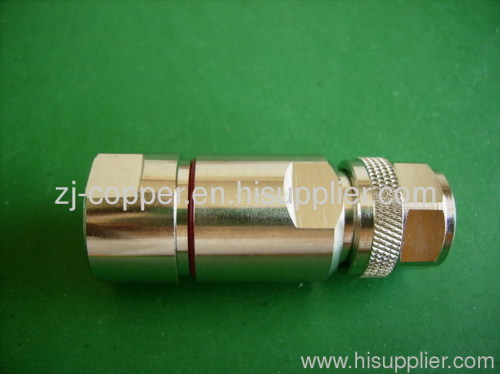

N Male Connector For 1/2" Feeder Cable
50ohm
Installation on GSM base station.
Applicable Standard: MIL-C-39012; CECC-22210; IEC 60169-16
Electrical characteristics:
1) Nominal impedance: 50 ohms
2) Frequency range: 0- 11GHz
3) Withstand Vol.: 4000V
4) VSWR: Max. 1.15
5) Contact resistance:
A) Inner conductor: Max. 1.0M ohms
B) Outer conductor; Max. 0.25M ohms
6) Isolation: Min. 5, 000M ohms

Material and finish:
1) Body: Brass nickel plated
2) Sub-assembly: Brass nickel plated
3) Outer conductor: Brass nickel plated
4) Inner conductor: Beryllium copper
5) Dielectric: PTFE
6) Durability: Min. 500 cycles
Applications:
1) Antennas 2) Base station 3) Broad cast 4) cable assembley
5) cellular 6) components 7) Instrumentation 8) Microwave Radio
9) Mil-Aero 10) PCS 11) Radar 12) Radios
13) Satcom 14) Surge Protection 15) WLAN.
Note:
1) These characteristics are typical but may not apply to all connectors.
2) Special Specification (datasheet) for each model is base on customer's request.
