1-5/8" RF Connector from China manufacturer - Zhejiang JinYuan Copper International Co., Ltd.

Price:	0.03~0.3 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZJ-121119

Production Capacity: 500000 Piece/Pieces per Wee...

Delivery Date: 10 days

Type: DIN

Application: RF

Means of Transport: Ocean,Land,Air

Packing: Polybag,Carton

Brand Name: JINYUAN

Gender: Female and Male

7/16 din connector for 1-5/8" cable
1. Female or Male connectors;
2. For 1-5/8" cable;
3. RoHS Compliant;

7/16 din connector for 1-5/8" cable
1. Female or Male connectors;
2. For 1-5/8" cable;
3. RoHS Compliant;
Electrical Impedance: 50 ohm VSWR: 0-2GHz < 1.1
RF leakage: < -128dB(at1GHz) --------------- < -90dB(2 3GHz)
WithstandingVoltage: 4000V 50Hz 2500V 50Hz
Working Voltage: <1000V 50Hz
Insulation Resistance: >10000M ohm ---------- > 5000M ohm
Contact Resistance:Inner Contact: < 0.8m ohm
Outer Contact : < 1.5m ohm
Operating Temperature Range: -40~+85
CelsiusStorage Temperature Range: -40~+85
CelsiusHumidity: < 95%
Durability (times/Matings):> 500
Shock :300m/s2 6ms , > 0.56N
DIN Center conductor Withdrawal Force: > 0.56N N Center conductor Withdrawal Force Max.Matings: 500 250 100 60 30 Connector With Coupling Nut Torque: 1Nm 2Nm 3Nm 4Nm 5Nm

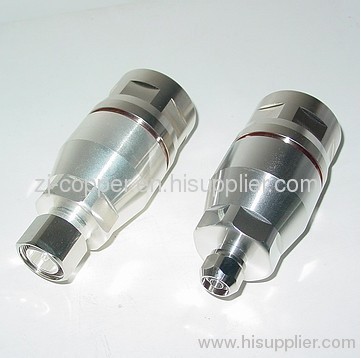

1-5/8RF Connector DIN/7/16 Male and Female
