Coaxial Cable ; RG6 from China manufacturer - Zhejiang JinYuan Copper International Co., Ltd.

Price:	0.1 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZJ-2012-C08

Production Capacity: 1000km/MONTH

Delivery Date: 15days

Type: Coaxial

Number of Conductors: 1

Operating Temperature: 20degree

Means of Transport: Ocean,Land

Packing: Standard export packing or ...

Application: Telecommunications

Brand Name: OEM

Nominal Outer Diameter: 6.9

We are a professional manufacture of coaxial cable from China,
Main prodcut: RG6. RG11. RG58, RG500, QR500. LEAKY FEEDR CABLE. QR500. RG540. RG75

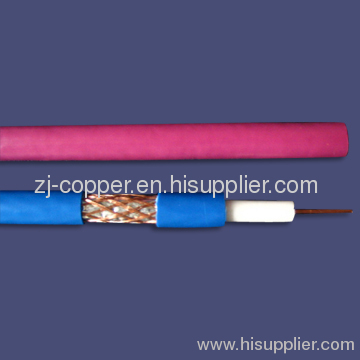

RG6 coax cable for HDTV
Conductor: 1.02mm BC/CCS
Dielectric: 4.7mm Foam PE
Shield: AL-FOIL
Braiding:0.12/0.16mm AL
Jacket: 6.8mm PVC

RG6 coaxial cable

1)1.02mm BC/CCS+4.7mm Foam PE+ A/P(Bonded)+60% AL Braiding+6.8mm PVC Jacket

2)customers' specifications are welcomed.

Note:

1)center conductor: Tinned Copper,Bare Copper,and Copper Clad steel available'

2)Al-foil:Non-bonded Al-foil,bonded Al-foil,double bonded Al-foil;

3)Braiding wire:AL,Bare copper and Tinned copper available;

4)Braiding wire diameter:0.10,0.12,0.13,0.14,0.15,0.16mm available;

5)Braiding net:32,48,64,72,80,96,112,120,128,144 and more available;

6)Braiding coverage: between 30-97% available;

PVC jacket of Flame retardant,UV,or UL available

Characteristics:

Impedance:75+/-3 ohm

Velocity of propagation:85%

Capacitance:52 pF/m

Return loss:20 dB min

Attenuation:[@68F.(20 C)] dB/100 meters

5MHz:1.90dB 500MHz:15.09dB

55MHz:5.25dB 600MHz:16.73dB

83MHz:6.40dB 750MHz:18.54dB

187MHz:9.35dB 1000MHz:21.49dB

211MHz:10.00dB 1450MHz:26.16dB

250MHz:10.82dB 1800MHz:27.73dB

350MHz:12.63dB 2100MHz:31.15dB

400MHz:13.61dB 2250MHz:34.03dB

Package:

1)packinglengths:100m/roll,200m/roll,305m/roll,

100yard/roll,200yard/roll,300yard/roll

Other lengths available according to client's request;

2)inner packing:wooden reel,plastic reel

3)outer packing:wooded drum,carton box,pull box,pallet available

(Other packing available according to client's request)

Product Origin:China

Brand Name: OEM

Price Terms: FOB,CIF

Shipping date: 15 days

Certificates: ISO,CE,FCC,RoHS

RG6 coax cable for HDTV, Satellite TV, Broadband, Cable TV, VSAT, TV Antenna and MATV and SMATV distribution systems.

RG6 coax cable for HDTV, Satellite TV, Broadband, Cable TV, VSAT, TV Antenna and MATV and SMATV distribution systems.

Detailed specification :

18AWG/1.02mm Copper-clad steel ; 4.57mm Gas-injected Polyethylene ; Bonded Al foil ;

60% Al braid ; 6.91mm Virgin PVC jacket black

Physical Dimensions

Component		Standard Shield (Dia.mm)	Three-Shield (Dia.mm)	Quad-Shield (Dia.mm)
Inner Conductor		1.02	1.02	1.02
Dielectric		4.57	4.57	4.57
First Shield (Tape)		4.75	4.75	4.75
Jacket		6.90	7.06	7.54
Steel Messenger	Single	1.30	1.30	1.30
Steel Messenger	Dual	1.83	1.83	1.83

Mechanical Characteristics

Minimum Breaking Strength of Messenger	Dia. 1.30mm 82kgf
	Dia. 1.83mm 166kgf

Electrical Characteristics

Impedance	75
Shielding Effectiveness (Ydb)	55MHz	68
	300MHz	70
	1000MHz	70
SRL(Ydb)	VHF	20
SRL(Ydb)	UHF	20

Attenuation (20 c, Udb/100m)

55MHz	5.3
211 MHz	10.0
270 MHz	11.0
300 MHz	11.6
330 MHz	12.3
400 MHz	13.6
450 MHz	14.4
550 MHz	16.2
750 MHz	19.0
870 MHz	20.6
1000 MHz	22.2
